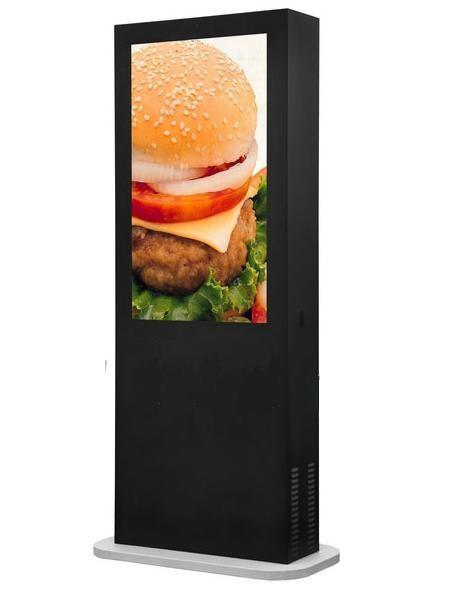

All Weather Outdoor Touch LCD
Features Highlight:
1. All-Weather outdoor Digital Signage
2. Vandal-Resistant Construction
3. Easy to Service Modular Design
4. All Weather Proof IP65 Enclosures
5. 6mm AR Bonding TM-special glass
6. High-Brightness LCD Panel
7. Automatically Adjust Monitor Brightness
8. Operating Temperature -40∩ to 55∩
9. Integrated heater and air conditioner
10. Intelligent surveillance
All Weather Outdoor LCD
Waterproof enclosure, outdoor anti-corrosion for 7 years
Various custom mounting methods, such as wall mounting, floor
standing, etc
Modular design, easy to maintain
AR bonding TM-protection glass, anti-glare
IP65 LCD
Outdoor LCD can be used in extreme environments
Intelligent Air conditioner integrated cooling and heating
Environment temperature -40--55∩
Adopt patent thermal technology
LCD will not turn black under direct sunlight
Use R134a R410a environmental friendly refrigerant
Monitor LCD inside running state such as temperature, humidity and
vibration
Sun Readable LCD
High bright Panel 1500-2500cd/m2
LED backlight, environmental friendly and energy saving
Support HD picture, resolution 1920*1080
Temperature control system by patent technology
LCD keeps 7*24 hours continuours runing without bright attenuation
With light sensor, automatically adjust the brightness
32"All Weather Outdoor LCD Specification
| High Brightness Panel | |
| Size | 42"(523 mm *930mm) |
| Aspect Ratio | 9:16 |
| Resolution | 1920*1080 Full HD |
| Brightness | 1500 cd/m |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178∑ Horizontal / 178∑Vertical |
Working Parameter | |
| Video Interface | VGA HDMI CVBS S-Video |
| Audio interface | AUDIO IN |
| Brightness Control | automatic optical sensor systems |
| Working Temperature | -40∑C to +55∑C |
| Working Humidity | 5% to 100% |
| Power Source | AC 108-115V,/AC 208-240V |
| Maximum Power | 0.8 Kw |
Waterproof Enclosure | |
| Protection Grade | IP65 |
| Machine size (W*H*D) | 684mm*1920mm*255 mm |
| G.W | 108kg |
| Installation Type | Floor Standing |
| Glass | 6mm AR Bonding TM-special glass |
| Temperature control system | Integrated heater and air conditioner |
32" All Weather Outdoor LCD Optional
1. Embeded digital signage play system
2. MINI-PC information issue system
3. Outdoor touch screen
4. Inside condition monitor system
5. Anti-graffiti protection on surface
6. Customized shape and color of enclosure
